| Place of Origin: | China |
| Brand Name: | Sunyo |
| Certification: | TUV Rhineland, RoHS, CE etc. |
| Model Number: |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50pcs / opp |
| Delivery Time: | 7-35 days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 10000pcs / Week |
solar cable with TUV/ UL approved, sample is available
Detailed Product Description
| Test Voltage: | 6500V,50Hz,5Min | Temperature Rating: | -40oC-125oC, More Than 25 Years (TUV) |
|---|---|---|---|
| Fire Performance: | IEO 60332-1 | Smoke Emission: | IEC61034,EN 50268-2 |
| Low Fire Load: | DIN 51 900 | Certification: | TUV 2PFG 1169/08.2007 PVI-F |
Pv1 F Solar Cable 4mm Manufacturer
Product Description
Solar cable is the interconnection cable used in solar power generation. A solar cable interconnects solar cell and other electrical components of a solar system. Solar cables are designed to be UV resistant and weather resistant. It can be used within a large temperature range and are generally laid outside.
Dongguan Sunyo-Photovoltaic Co., Ltd
is used in photovoltaic power generation and solar system,interconnects solar panels and electrical components in the photovoltaic system.The size from 1.5 mm2to120mm2 ,suitable for outdoor extreme
environments,UV,ozone,hydrolysis resistant.
Halogen Free,Flame Retardant,ROHS
25 Years of Production Experience In Power Cable
TUV Approved & TUV 2PFG 1169/08.2007 PVI-F
Double Insulation Suitable for outdoor harsh environments
Stable connection & Reducing maintenance cost
Free Sample is available
Company Profile
Dongguan Sunyo-Photovoltaic Co., Ltd
Technology Co.Ltd is a new energy enterprise, located in Shenzhen, China, specializing in manufacturing and marketing solar connectors, solar cable , pv wire,waterproof cable connector, PV junction boxes, solar cable and PV assembles etc., Our products are widely used in PV power station, independent solar power supply system, and solar lights (solar road lights, solar courtyard lights, and solar traffic lights etc.). With first-class quality, our products have passed TUV Rhineland, UL, and CE successfully.
Specification

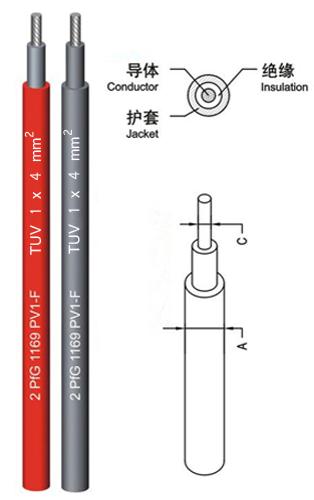

pv1 f solar cable 4mm2
| ||
|---|---|---|
| Conductor | Tinned fine Re copper strands,according to VDE0295/IEC60228.Class5 |
Insulation | Polyolefin Copolymer electron-beam cross-linked | |
Sheath Jacket | Polyolefin Copolymer electron-beam cross-linked | |
Nominal Voltage | Uo/U=600V/1000VAC,1000/1800VDC | |
Test voltage | 6500V,50Hz,5Min | |
Temperature Rating | -40oC-125oC, More Than 25 Years (TUV) | |
Fire Performance | IEO 60332-1 | |
Smoke Emission | IEC61034,EN 50268-2 | |
Low Fire Load | DIN 51 900 | |
Certification | TUV 2PFG 1169/08.2007 PVI-F | |
Dimensions
The size from 1.5mm2 to 120mm2.
Production Processes of Solar Cable
The factory production process in line with ISO standards, the whole quality control.
Packing For Shipment
Multiple packaging methods, suitable for different transport conditions.
