| Place of Origin: | China |
| Brand Name: | Sunyo |
| Certification: | TUV Rhineland, RoHS, CE etc. |
| Model Number: |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50pcs / opp |
| Delivery Time: | 7-35 days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 10000pcs / Week |
Ozone Resistant Solar Cable Wire 1500V 6mm Solar PV Cable TUV Certified
Detailed Product Description
| Temperature Rating: | -40oC-125oC, More Than 25 Years (TUV) | Fire Performance: | IEO 60332-1 |
|---|---|---|---|
| Smoke Emission: | IEC61034,EN 50268-2 | Low Fire Load: | DIN 51 900 |
| Certification: | TUV 2PFG 1169/08.2007 PVI-F | Name: | Solar Cable |
Tuv 2pfg 1169 Solar Cable 6mm 1500V
Product Description
Dongguan Sunyo-Photovoltaic Co., Ltd
Solar Cable 6mm is used in photovoltaic power generation and solar system,interconnects solar panels and electrical components in the photovoltaic system.The size from 1.5 mm2 to120mm2 ,suitable for outdoor extreme
environments,UV,ozone,hydrolysis resistant.
Halogen Free,Flame Retardant,ROHS
25 Years of Production Experience In Power Cable
TUV Approved & TUV 2PFG 1169/08.2007 PVI-F
Double Insulation Suitable for outdoor harsh environments
Stable connection & Reducing maintenance cost
Free Sample is available
Specification
Tuv 2pfg 1169 Solar Cable 6mm 1500V
| ||
|---|---|---|
| Conductor | Tinned fine Re copper strands,according to VDE0295/IEC60228.Class5 |
Insulation | Polyolefin Copolymer electron-beam cross-linked | |
Sheath Jacket | Polyolefin Copolymer electron-beam cross-linked | |
Nominal Voltage | Uo/U=600V/1000VAC,1000/1800VDC | |
Test voltage | 6500V,50Hz,5Min | |
Temperature Rating | -40oC-125oC, More Than 25 Years (TUV) | |
Fire Performance | IEO 60332-1 | |
Smoke Emission | IEC61034,EN 50268-2 | |
Low Fire Load | DIN 51 900 | |
Certification | TUV 2PFG 1169/08.2007 PVI-F | |

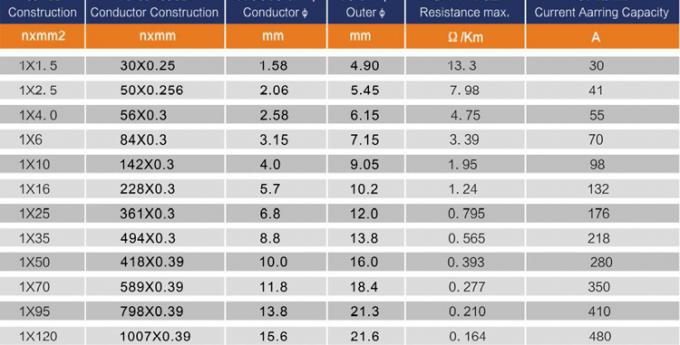

Dimensions
The size from 1.5mm2 to 120mm2.

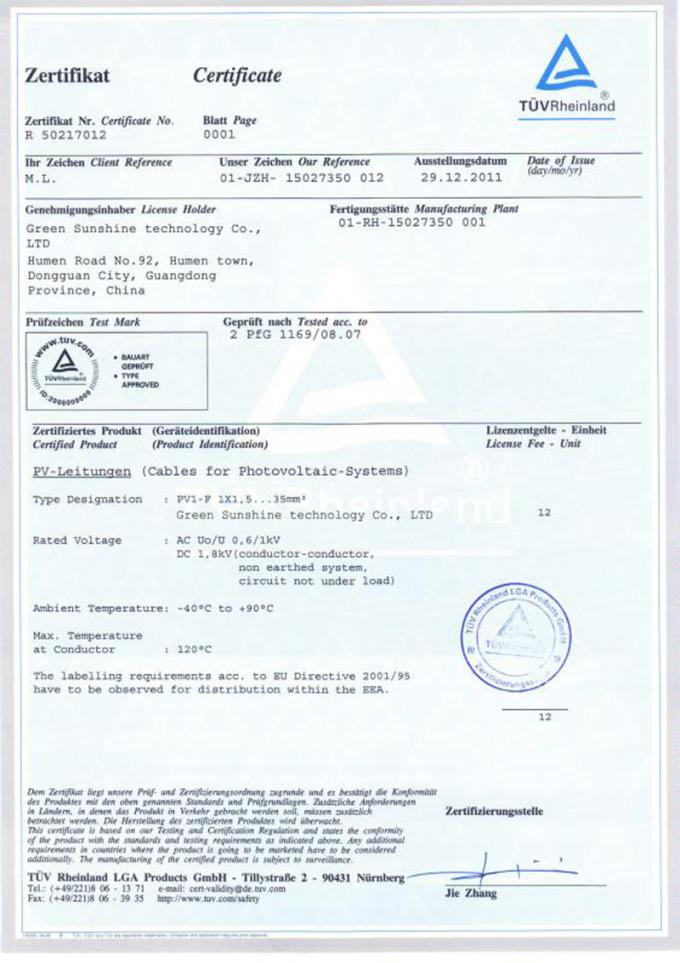

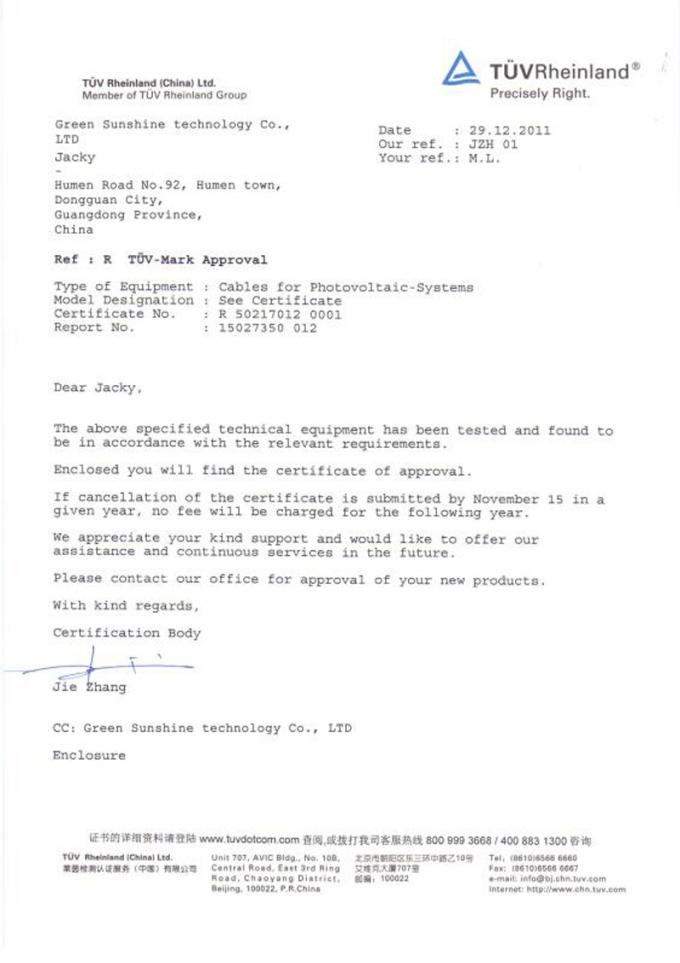

Certifications
Dongguan Sunyo-Photovoltaic Co., Ltd
Ozone Resistant Solar Cable Wire 1500V 6mm Solar PV Cable TUV Certified
Technology Co.Ltd obtains TUV,CE,RoHS and other certifications.

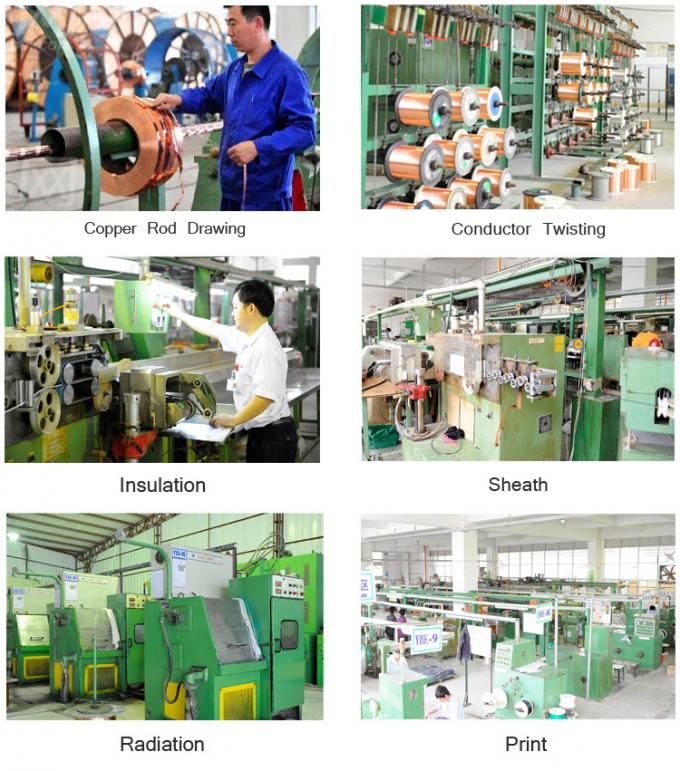

Production Processes of Solar Cable 6mm Ozone Resistant Solar Cable Wire 1500V 6mm Solar PV Cable TUV Certified
The factory production process in line with ISO standards, the whole quality control.

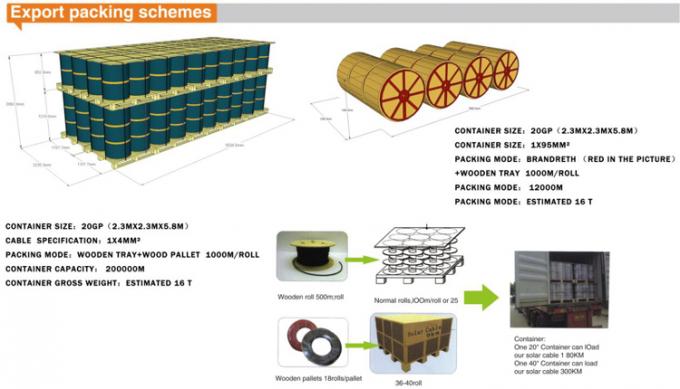

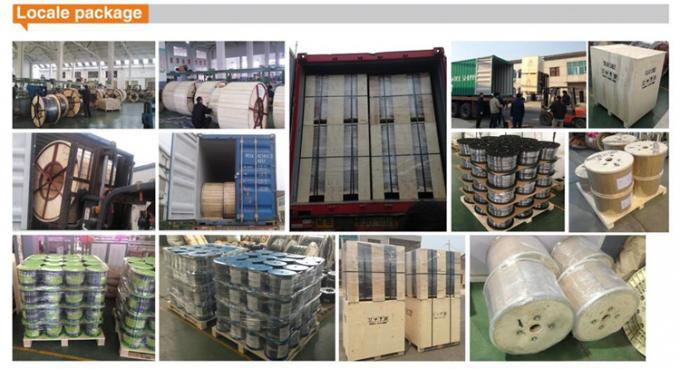

Packing For Shipment
Ozone Resistant Solar Cable Wire 1500V 6mm Solar PV Cable TUV Certified
Multiple packaging methods, suitable for different transport conditions.
