| Place of Origin: | China |
| Brand Name: | Sunyo |
| Certification: | TUV Rhineland, RoHS, CE etc. |
| Model Number: | SY-CF4B |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50pcs / opp |
| Delivery Time: | 7-35 days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 10000pcs / Week |
| Test Voltage: | 6KV(50Hz,1Min) | Degree Of Protection: | IP68 |
|---|---|---|---|
| Nsulation Material: | PPO | Contact Material: | Copper, Tin Plated |
| Pin Dimension: | 4.0 MM | Rated Current: | 1A-20A (Fuse) |

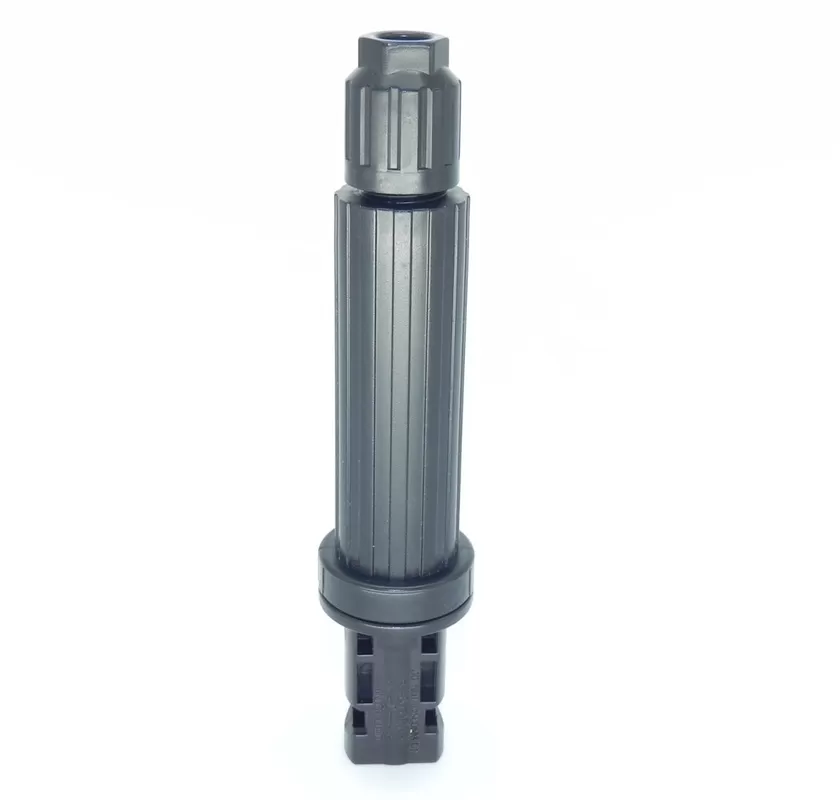

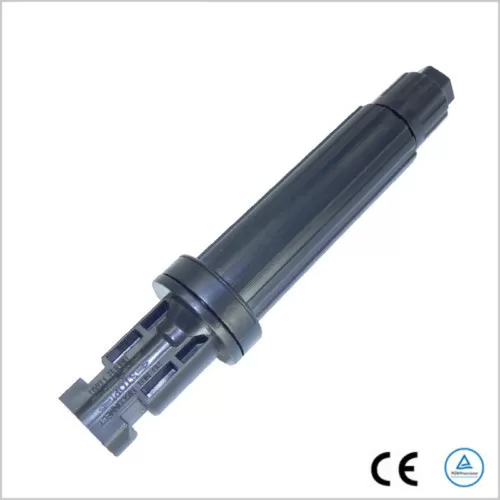

Mc4 Fuse Connector For Photovoltaic Applications
Difference between MC3 and MC4 connectors
| MC3 connectors | MC4 connectors |
| No need for Unlock tool | MC4 Tightening and Unlock Tool |
| Rennsteig Pro-Kit Crimping Tool (MC3, MC4, Tyco) | Rennsteig Pro-Kit Crimping Tool (MC3, MC4, Tyco) |
Product Description
Dongguan Sunyo-Photovoltaic Co., Ltd.
MC4 Fuse Connector is Compatible with MC4 connector,suitable to solar cable 2.5 mm2,
4mm2 and 6mm2 in solar connection project.Inline 10 x 38 mm DC Fuse for protect solar panel,quickly
and reliable connection of the solar cablesto the photovoltaic system(solar panels, converters).
Compatible with MC4 cable coupler solar connector PV-KBT4/KST4.
15 Years of production experience in solar connectors
TUV approved & Quick and easy to install
Protection class IP68 Suitable for outdoor harsh environments
Stable connection & Reducing maintenance cost
Free Sample is available
How to Install MC4 Connectors
Step 1: Strip the solar panel cable to expose approximately 3/8＂of the stranded copper cable
Step 2: Crimp terminal well,and put the terminal to the connector directly.
Step 3: Using solar spanner to slide the strain relief/ grommet and nut back onto the MC4 connector. Firmly hand tighten the nut.
Step 4: Well done
Specification of Mc4 Fuse Connector
Mc4 Fuse Connector
| ||
|---|---|---|
| Product NO. | SY-CF4B-M |
| Insulation material | PPO | |
| Rated Voltage | TUV 1000 DC/ UL 600V DC | |
| Rated Current | 1A-20A (Fuse) | |
| Test voltage | 6KV(50Hz,1Min) | |
| Contact material | copper, tin plated | |
| Contact resistance | less than 0.5 m ohm | |
| Degree of protection | IP68 | |
| Pollution Degree | 2 | |
| Pin dimension | 4.0mm | |
Drawing For Mc4 Fuse connector
Please download the Drawing : MC4 inline fuse connector-SY-CF4B-M .JPG
Recent Project: 1500 MW Solar Project In Thailand
Contact Person: Mandy
