Solar Wire Connectors , PPO Insulated Solar Panel Connector Plugs

Product Details:

Place of Origin:	China
Brand Name:	Sunyo
Certification:	TUV Rhineland, RoHS, CE etc.
Model Number:

Payment & Shipping Terms:

tr>

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	50pcs / opp
Delivery Time:	7-35 days
Payment Terms:	L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability:	10000pcs / Week

Contact Now

Detailed Product Description

Rated Voltage:	TUV 1000 DC/ UL 600V DC	Test Voltage:	6KV(50Hz,1Min)
Degree Of Protection:	IP68	Compatible Solar Cable:	2.5/4.0 /6.0 Mm² (14/12/10 AWG)
Contact Material:	Copper, Tin Plated	Insulation Material:	PPO
Pin Dimension:	4.0 MM	Rated Current:	10A-15A ( Diode),20-30A solar Pins

China solar Diode Connector Free Sample

Product Description

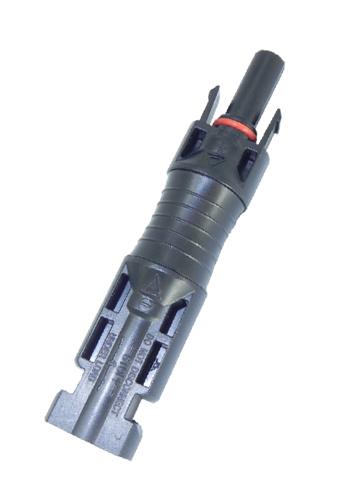

solar diode connector

Dongguan Sunyo-Photovoltaic Co., Ltd.

solar diode connector is Compatible with multi contact 4 connector,suitable to solar cable 2.5 mm²,
4mm² and 6mm² in solar connection project.quickly and reliable connection of the solar cables to thephotovoltaic
system(solar panels, converters).

Compatible with solar cable coupler solar connector PV-KBT4/KST4.
15 Years of production experience in solar connectors
TUV approved & Quick and easy to install
Protection class IP68 Suitable for outdoor harsh environments
Stable connection & Reducing maintenance cost
Free Sample is available

How to Connect solar Connectors?

Components

1. Female Insulated Connector Housing
2. Male Insulated Connector Housing
3. Housing Nut with internal rubber bushing/cable gland (seals wire entry)
4. Female Mating Contact
5. Male Mating Contact
6. Wire Crimp Area
7. Locking Tab
8. Locking Slot – Unlock Area (press to release)

Assembly

Dongguan Sunyo-Photovoltaic Co., Ltd.

’S solar connectors are compatible for use with AWG #10, AWG #12, or AWG #14 wire/cable with an outer insulation diameter between 2.5 and 6.0 mm.

1) Strip 1/4d of the insulation from the cable end to be terminated with the solar connector using a wire stripper. Be careful not to nick or cut the conductor.

2 )Insert the bare conductor into the crimping area (Item 6) of the metallic mating contact and crimp using a special purpose crimping tool. If a crimping tool is not available the wire may be soldered into the contact.

3 )Insert the metallic mating contact with the crimped wire through the Housing Nut and rubber bushing (Item 3) and into the insulated housing, till the metallic pin fits snug into the housing.

4) Tighten the Housing Nut (Item 3) onto the connector housing. When the nut is tightened, the internal rubber bush is compressed around the outer jacket of the cable and thus, provides water-tight sealing.

Installation

Push the Two Connector pairs together such that the two locking tabs on the solar Female Connector (Item 7) align with the two corresponding locking slots on the solar Male Connector (Item 8). When the two connectors are coupled, the locking tabs slide into the locking slots and secure.

To uncouple the two connectors, press the ends of the locking tabs (Item 7) as they appear in the open locking slot (Item 8) to release the locking mechanism and pull the connectors apart.

Make sure that no current is flowing when uncoupling is attempted.

Warning

1. When the surface of a solar panel is exposed to sunlight, a DC voltage appears at the output terminals turning it into a live voltage source that may produce electrical shock.

2. To avoid any electrical shock hazard during assembly/installation, make sure that the solar panel is not exposed to sunlight or is covered to block any solar irradiation.

Specification Of solar Diode Connector

solar Diode Connector
	Product NO.	SY-CM4A-D
	Insulation material	PPO
	Rated Voltage	TUV 1000 DC/ UL 600V DC
	Rated Current	10A-15A ( Diode),20-30A solar Pins
	Test voltage	6KV(50Hz,1Min)
	Contact material	copper, tin plated
	Contact resistance	less than 0.5 m ohm
	Degree of protection	IP68
	Pin dimension	4.0 MM
	Compatible Solar cable	2.5/4.0 /6.0 mm² (14/12/10 AWG)
