| Place of Origin: | China |
| Brand Name: | Sunyo |
| Certification: | TUV Rhineland, RoHS, CE etc. |
| Model Number: | SY-Cable |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50pcs / opp |
| Delivery Time: | 7-35 days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 10000pcs / Week |
| Nominal Voltage: | Uo/U=600V/1000VAC,1000/1800VDC | Test Voltage: | 6500V,50Hz,5Min |
|---|---|---|---|
| Temperature Rating: | -40oC-125oC, More Than 25 Years (TUV) | Fire Performance: | IEO 60332-1 |
| Low Fire Load: | DIN 51 900 | Smoke Emission: | IEC61034,EN 50268-2 |

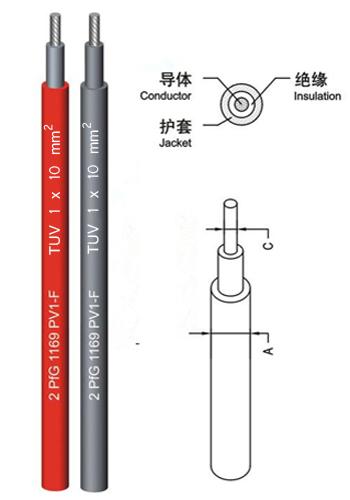

TUV Approved Solar Panel Wire Pv1 f Cable 10mm
Feature
Insulation
The cable’s insulation must be able to withstand thermal and mechanical loads. As a consequence, plastics which have been cross-linked using an electron beam are increasingly used today. The insulation and jacket materials are extremely resistant to weathering, UV-radiation and abrasion. Additionally, it is salt water resistant and resistant to acids and alkaline solutions. It is suitable for fixed installation as well as for moving applications without tensile load. It is especially designed for outdoor use, which means direct sun radiation and air humidity, but due to the halogen free flame retardant cross-linked jacket material the cable can also be installed in dry and humid conditions indoors.
Product Description
Dongguan Sunyo-Photovoltaic Co., Ltd.
Solar Panel wire is used in photovoltaic power generation and solar system,interconnects solar panels and electrical components in the photovoltaic system.The size from 1.5 mm2 to120mm2 ,suitable for outdoor extreme
environments,UV,ozone,hydrolysis resistant.
Halogen Free,Flame Retardant,ROHS
25 Years of Production Experience In Power Cable
TUV Approved & TUV 2PFG 1169/08.2007 PVI-F
Double Insulation Suitable for outdoor harsh environments
Stable connection & Reducing maintenance cost
Free Sample is available
Specification of solar panel wire
Solar Panel wire 10mm2
| ||
|---|---|---|
| Conductor | Tinned fine Re copper strands,according to VDE0295/IEC60228.Class5 |
| Insulation | Polyolefin Copolymer electron-beam cross-linked | |
| Sheath Jacket | Polyolefin Copolymer electron-beam cross-linked | |
| Nominal Voltage | Uo/U=600V/1000VAC,1000/1800VDC | |
| Test voltage | 6500V,50Hz,5Min | |
| Temperature Rating | -40oC-125oC, More Than 25 Years (TUV) | |
| Fire Performance | IEO 60332-1 | |
| Smoke Emission | IEC61034,EN 50268-2 | |
| Low Fire Load | DIN 51 900 | |
| Certification | TUV 2PFG 1169/08.2007 PVI-F | |

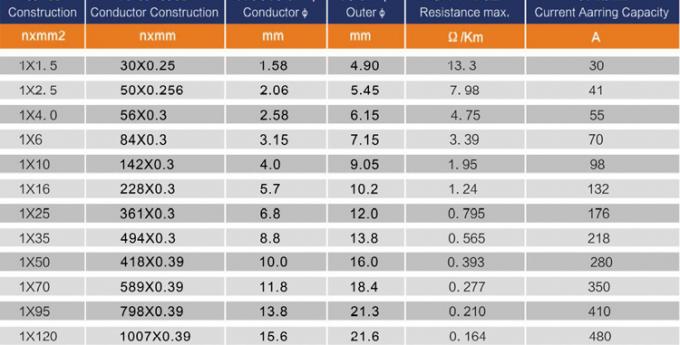

Dimensions
The size from 1.5mm2 to 120mm2.
Certifications
Dongguan Sunyo-Photovoltaic Co., Ltd. obtains TUV,CE,RoHS and other certifications.

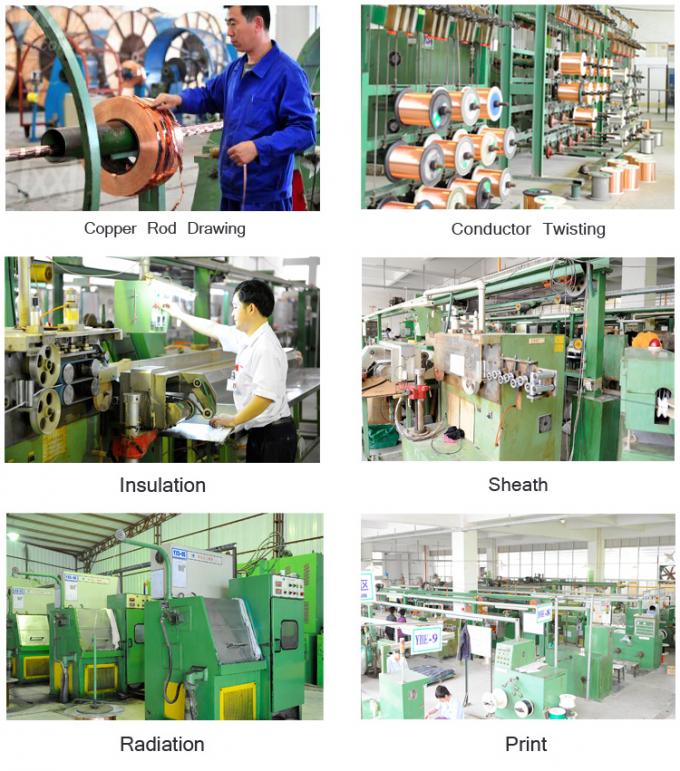

Production Processes of MC4 Wire
Our company passed ISO9001,QMS,CCC,CE,CSA and UL in 2003.TUV in 2005,we have continually improved the
product quality and establishes a quality management.

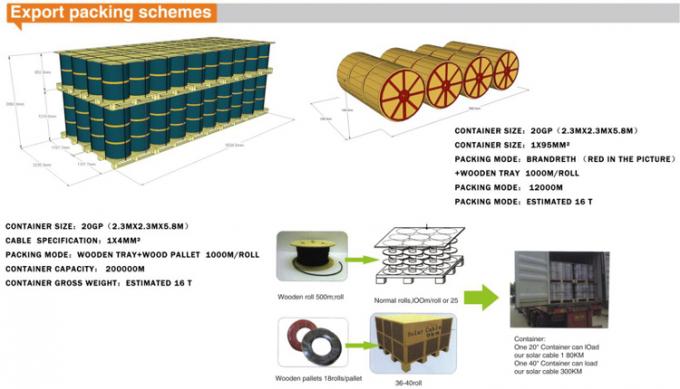

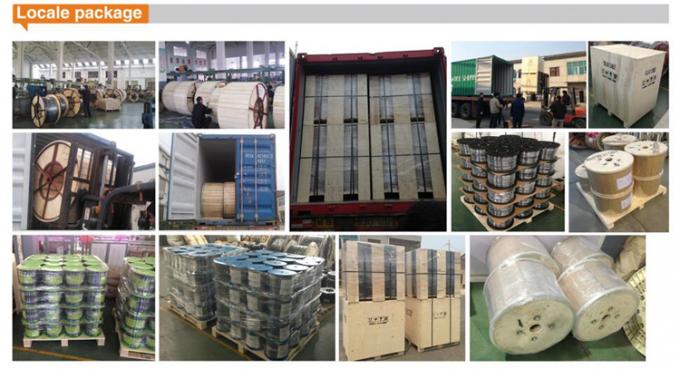

Packing For Shipment
Multiple packaging methods, suitable for different transport conditions.
