solar panel cable connector, PV multiple socket solar cable IP67

Product Details:

Place of Origin:	China
Brand Name:	Sunyo
Certification:	TUV Rhineland, RoHS, CE etc.
Model Number:	SY-CP4B

Payment & Shipping Terms:

tr>

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	50pcs / opp
Delivery Time:	7-35 days
Payment Terms:	L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability:	10000pcs / Week

Contact Now

Detailed Product Description

Contact Material:	Copper, Tin Plated	Rated Voltage:	TUV 1000 DC/ UL 600V DC
Rated Current:	20A-30A	Test Voltage:	6KV(50Hz,1Min)
Degree Of Protection:	IP67	Compatible Solar Cable:	2.5/4.0 /6.0 Mm² (14/12/10 AWG)

Solar Panel Connectors MC4 With TUV Approved

How to Connect MC4 Connectors?

Components

MC4 Solar DC Connectors With Tin Plated Copper Contact TUV Certified

1. Female Insulated Connector Housing
2. Male Insulated Connector Housing
3. Housing Nut with internal rubber bushing/cable gland (seals wire entry)
4. Female Mating Contact
5. Male Mating Contact
6. Wire Crimp Area
7. Locking Tab
8. Locking Slot – Unlock Area (press to release)

Assembly

Dongguan Sunyo-Photovoltaic Co., Ltd.

’S MC4 connectors are compatible for use with AWG #10, AWG #12, or AWG #14 wire/cable with an outer insulation diameter between 2.5 and 6.0 mm.

1) Strip 1/4d of the insulation from the cable end to be terminated with the MC4 connector using a wire stripper. Be careful not to nick or cut the conductor.

2 )Insert the bare conductor into the crimping area (Item 6) of the metallic mating contact and crimp using a special purpose crimping tool. If a crimping tool is not available the wire may be soldered into the contact.

3 )Insert the metallic mating contact with the crimped wire through the Housing Nut and rubber bushing (Item 3) and into the insulated housing, till the metallic pin fits snug into the housing.

4) Tighten the Housing Nut (Item 3) onto the connector housing. When the nut is tightened, the internal rubber bush is compressed around the outer jacket of the cable and thus, provides water-tight sealing.

Installation

Push the Two Connector pairs together such that the two locking tabs on the MC4 Female Connector (Item 7) align with the two corresponding locking slots on the MC4 Male Connector (Item 8). When the two connectors are coupled, the locking tabs slide into the locking slots and secure.

To uncouple the two connectors, press the ends of the locking tabs (Item 7) as they appear in the open locking slot (Item 8) to release the locking mechanism and pull the connectors apart.

Make sure that no current is flowing when uncoupling is attempted.

Product Description

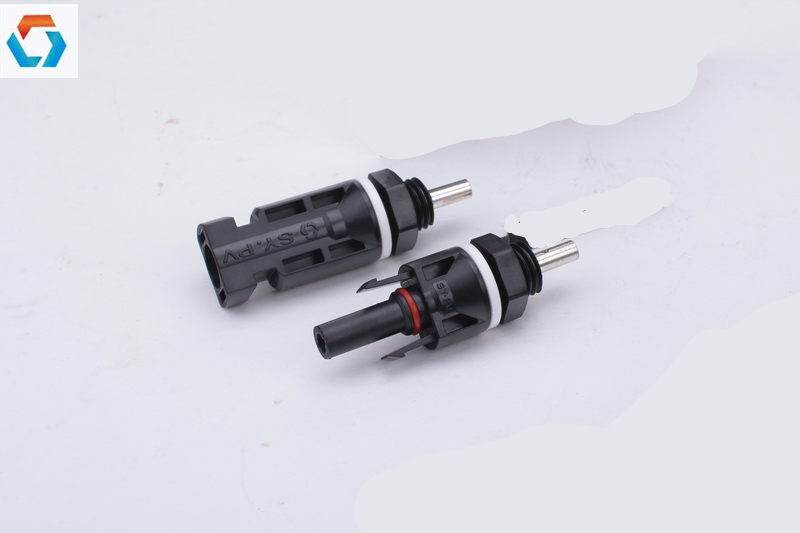

solar panel connectors mc4, known as Y or T branch connectors, is designed for connecting the
solar panel system. It can be used for permanent installation and outdoor enviroment with high quality
and IP67 class waterproof material.

Compatible with MC4 cable coupler solar connector PV-KBT4/KST4.
15 Years of production experience in solar connectors
TUV approved & Quick and easy to install
Protection class IP67 Suitable for outdoor harsh environments
Stable connection & Reducing maintenance cost
Load capability with big current and high voltage

Specification Of Solar Panel Connectors MC4

Solar Panel Connectors MC4
	Product NO.	SY-CP4B
	Insulation material	PPO
	Rated Voltage	TUV 1000 DC/ UL 600V DC
	Rated Current	20A-30A
	Test voltage	6KV(50Hz,1Min)
	Contact material	copper, tin plated
	Contact resistance	less than 0.5 m ohm
	Degree of protection	IP67
	Pin dimension	4.0 MM
	Compatible Solar cable	2.5/4.0 /6.0 mm² (14/12/10 AWG)

DRAWING of Solar Panel Connectors MC4

Production Processes of Cable Connector

First of all,we need to die casting pins.Then,inject plastic into it.Next,use machine to assembly positioning shrapnel.Fourth,auto assembly O-ring and connector.After assembly,it’s the processes of testing.Firstly,test its resistance.Secondly,test its pull. Thirdly,test its water proof.What’s more,test its wet insulation.At last,plastic closures and package.

MC4 Connector
